Overview

When you create a workflow, you can set it to execute automatically according to a schedule. This schedule uses a cron-based format in the UTC timezone. When the scheduled expression matches the current UTC time, PayMongo will automatically execute your specified workflow.

Cron-Schedule Format

The cron schedule is based on this format:

┌───────────── minute (0 - 59)
│ ┌───────────── hour (0 - 23)
│ │ ┌───────────── day of the month (1 - 31)
│ │ │ ┌───────────── month (1 - 12)
│ │ │ │ ┌───────────── day of the week (0 - 6) (Sunday to Saturday)
│ │ │ │ │
│ │ │ │ │
* * * * *

Based on the schedule format, you can use the crontab guru site to test your cron expressions. Here are some of the schedules that you can use to execute a workflow:

Cron Schedule	Description
`* * * * *`	Every minute
`0 * * * *`	Every hour, at the start of the hour
`0 0 * * *`	Every day at midnight (UTC)
`15 8 * * *`	Every day at 8:15 AM (UTC)
`0 0 * * 0`	Every week on Sunday at midnight (UTC)
`0 0 1 * *`	Every month on the 1st at midnight (UTC)
`0 0 1 1 *`	Every year on January 1st at midnight (UTC)
`30 9 * * 1-5`	Every weekday (Mon–Fri) at 9:30 AM (UTC)
`0 0,12 * * *`	Twice a day at midnight and noon (UTC)
`0 12 * * 1`	Every Monday at noon (UTC)

Pre-Requisites

An activated PayMongo account with PayMongo Wallet
Workflow feature is enabled in the PayMongo account(s). Kindly contact [email protected] to enable this functionality if it's not enabled.

Proposed Flows

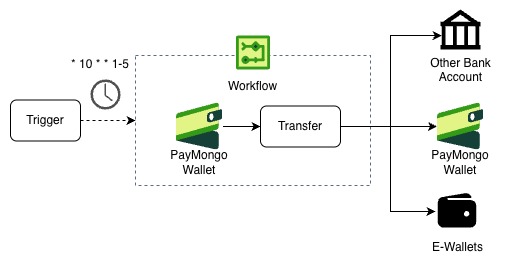

In this scenario, you can create a trigger based on a cron expression that automatically executes a workflow to send money from a PayMongo wallet to one or many destinations at a predetermined schedule.

Step 1: Create a Workflow

In this step, we will create a workflow definition that transfers the funds received from the PayMongo Wallet to the intended destination(s). We will use the send_money workflow step for this process. To create a workflow, use the Create a Workflow endpoint.

Resource URL

POST https://workflow-api.paymongo.com/v1/workflows

Request Example

This endpoint receives a text/plain request body. To include your workflow definition, place it in the request body as raw text.

curl --location 'https://workflow-api.paymongo.com/v1/workflows' \
--header 'Content-Type: text/plain' \
--header 'Organization-Id: org_k92tXwQfLJm8aZyR4vB1cNd7'\
--header 'Authorization: Basic xxxxxx==' \
--data 'version: 1
name: "daily-sweep-wallet-balance"
description: "Scheduled daily sweep from merchant wallet to bank, keeping PHP 100 reserve"
steps:
  - name: "check_balance"
    get_wallet_balance:
      wallet_account: "516646818064"
  - name: "sweep"
    compute:
      outputs:
        balance: "steps['check_balance']['output']['available_balance']"
        min_reserve: "10000"
        sweep_amount: "monetary_max(balance - min_reserve, 0)"
  - name: "send-to-bank"
    send_money:
      provider: "auto"
      source:
        type: "wallet"
        account: "516646818064"
        account_name: "TestAccount1"
        bic: ""
      destination:
        type: "bank"
        account: "881234567890"
        account_name: "Unlimited Money Ltd"
        bic: "UBPHPHMMXXX"
      amount: "${steps.sweep.output.sweep_amount}"
      currency: "PHP"
      purpose: "99"
      notes: "Daily sweep balance from merchant wallet to merchant bank"'

curl --location 'https://workflow-api.paymongo.com/v1/workflows' \
--header 'Content-Type: text/plain' \
--header 'Organization-Id: org_k92tXwQfLJm8aZyR4vB1cNd7'\
--header 'Authorization: Basic xxxxxx==' \
--data 'version: 1
name: "daily-sweep-wallet-balance-to-parent-wallet"
description: "Scheduled daily sweep from merchant wallet to parent wallet"
steps:
  - name: "check_balance"
    get_wallet_balance:
      wallet_account: "516646818064"
  - name: "send-to-bank"
    send_money:
      provider: "paymongo"
      source:
        type: "wallet"
        account: "516646818064"
        account_name: "TestAccount1"
        bic: ""
      destination:
        type: "wallet"
        account: "775447521930"
        account_name: "TestAccount2"
        bic: "PAEYPHM2XXX"
      amount: "${steps.check_balance.output.available_balance}"
      currency: "PHP"
      purpose: "99"
      notes: "Scheduled daily sweep from merchant wallet to parent wallet"'

curl --location 'https://workflow-api.paymongo.com/v1/workflows' \
--header 'Content-Type: text/plain' \
--header 'Organization-Id: org_k92tXwQfLJm8aZyR4vB1cNd7'\
--header 'Authorization: Basic xxxxxx==' \
--data 'version: 1
name: "scheduled-send-to-e-wallet"
description: "Scheduled send money to e-wallet"
steps:
  - name: "send-to-bank"
    send_money:
      provider: "auto"
      source:
        type: "wallet"
        account: "516646818064"
        account_name: "TestAccount1"
        bic: ""
      destination:
        type: "bank"
        account: "09154255642"
        account_name: "John Doe"
        bic: "GXCHPHM2XXX"
      amount: "60000"
      currency: "PHP"
      purpose: "99"
      notes: "Scheduled send money to e-wallet"'

In the example scenarios above, we cover three different scenarios:

Sweeping or sending all of the wallet balances
- To get the current balance of the wallet, we can use the get_wallet_balance step, named check_balance
- We excluded 100 PHP (10000 in cents set as min_reserve ) to a bank account using the compute step named as sweep. The reason for the minimum reserve in the compute step is to ensure that you can cover the Transfer Fee (default to 10PHP) for every transfer from a PayMongo Wallet to an external Bank Account or e-wallet. If the wallet balance is less than 100 PHP, sweep_amount becomes 0, so no transfer is sent. This prevents the workflow from attempting a zero-amount transfer, which would fail.
Sweeping all of the wallet balances to another PayMongo Wallet.
Sending money to another e-wallet.

To check the details of send_money, kindly refer to the Send Money Step documentation . For the provider, kindly change the value as follows:

provider = auto if the destination.type is bank. The Workflow engine will automatically choose instapay or pesonet provider depending on the transfer amount.
provider = paymongo if the destination.type is wallet.

Example Response

{
    "id": "flow-tZpva8OACfkmCBO",
    "organization_id": "org_k92tXwQfLJm8aZyR4vB1cNd7",
    "name": "daily-sweep-wallet-balance-to-parent-wallet",
    "description": "Scheduled daily sweep from merchant wallet to parent wallet",
    "livemode": true,
    "definition": {
        "steps": [
            {
                "action_name": "get_wallet_balance",
                "name": "check_balance",
                "wallet_account": "516646818064"
            },
            {
                "action_name": "send_money",
                "amount": "${steps.check_balance.output.available_balance}",
                "currency": "PHP",
                "destination": {
                    "account": "775447521930",
                    "account_name": "TestAccount2",
                    "bic": "PAEYPHM2XXX",
                    "type": "wallet"
                },
                "notes": "Scheduled daily sweep from merchant wallet to parent wallet",
                "provider": "paymongo",
                "purpose": "99",
                "source": {
                    "account": "516646818064",
                    "account_name": "TestAccount1",
                    "bic": "",
                    "payment_id": "",
                    "type": "wallet"
                }
            }
        ],
        "version": 1
    },
    "created_at": "0001-01-01T00:00:00Z",
    "updated_at": "0001-01-01T00:00:00Z"
}

Step 2: Create Trigger

In this step, we will attach a trigger to automatically execute the workflow that we created in the previous step. To create a trigger, you can use the Create a Trigger endpoint.

Resource URL

POST https://workflow-api.paymongo.com/v1/triggers

Request Example

This endpoint receives an application/json request body with two parameters: workflow_id and condition as follows:

curl --location 'https://workflow-api.paymongo.com/v1/triggers' \
--header 'Content-Type: application/json' \
--header 'Organization-Id: org_k92tXwQfLJm8aZyR4vB1cNd7'\
--header 'Authorization: Basic xxxxxx==' \
--data '{
    "workflow_id": "flow-tZpva8OACfkmCBO",
    "condition": {
        "schedule": "*/2 * * * *"
    }
}'

Response

{
    "data": {
        "id": "tr-MmNK7Ddb0equJ6g",
        "organization_id": "org_k92tXwQfLJm8aZyR4vB1cNd7",
        "workflow_id": "flow-tZpva8OACfkmCBO",
        "livemode": true,
        "state": "active",
        "condition": {
            "schedule": "*/2 * * * *"
        },
        "created_at": "2026-03-26T13:22:27.305357105Z",
        "updated_at": "2026-03-26T13:22:27.305357189Z",
        "deleted_at": null
    }
}
